Braa SNMP Analyzer

Braa is a mass snmp scanner. The intended usage of such a tool is of course making SNMP queries – but unlike snmpget or snmpwalk from net-snmp, it is able to query dozens or hundreds of hosts simultaneously, and in a single process. Thus, it consumes very few system resources and does the scanning VERY fast.

Braa implements its OWN snmp stack, so it does NOT need any SNMP libraries like net-snmp. The implementation is very dirty, supports only several data types, and in any case cannot be stated ‘standard-conforming’! It was designed to be fast, and it is fast. For this reason (well, and also because of my laziness ;), there is no ASN.1 parser in braa – you HAVE to know the numerical values of OID’s (for instance .1.3.6.1.2.1.1.5.0 instead of system.sysName.0).

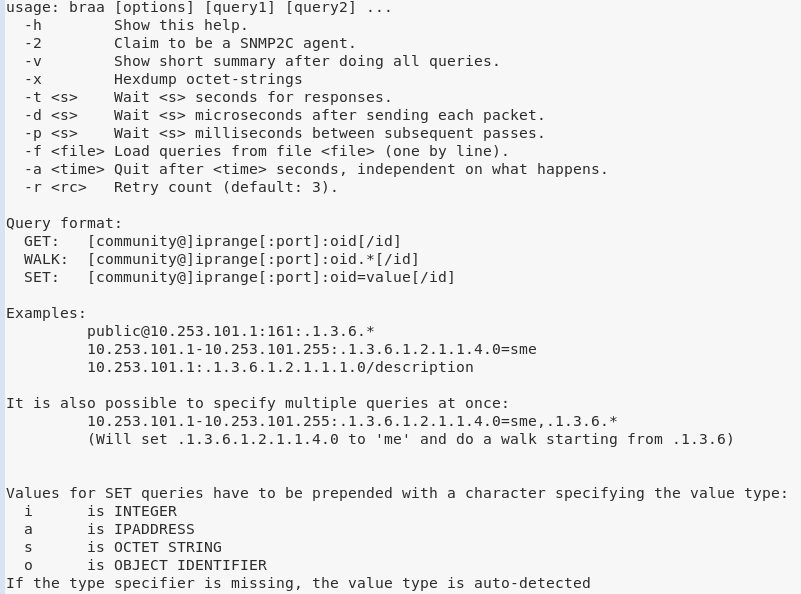

braa [-2] [-v] [-t <s>] [-f <file>] [-a <time>] [-r <retries>] [-d <delay>] [querylist1] [querylist2] ...

 As you can see, the list of queries to make is specified as a commandline argument. The syntax of the query list follows:

 [community@]host1[-host2][:port]:query1[/id][,query2[/id][,query3[/id]...]]

Some Example of OID

The 'private@' part before the host range of course sets the SNMP community name for the transaction to 'private'.

... and that seems to be all about the query format. You may also make a file containing the query lists one by line instead of providing them as commandline arguments. Use the -f option to load queries from such a list. Other options are:

 -r <count> retry count: try making each query <count> times before giving up. By default, the retry count is set to 3.

-a <seconds> deadline time; makes braa quit after <seconds> seconds, independent on what happens.

-2 SNMPv2C - braa will introduce itself as a SNMPv2C agent (but in fact the packets are always constructed according to SNMP1 RFCs). This is useful for retrieving data from objects that hold data types not covered by the SNMP1 specification - at the moment the only such supported data type is Counter64.

-t <seconds> Wait <seconds> seconds for responses. When nothing happens for the given time (there are no more messages to send and nothing more is received), braa quits. The default is 2 seconds.

-d <micro> Makes braa wait for <micro> microseconds after sending each packet. Useful if the bandwidth between you and the devices you are querying is limited - see the short explanation on how braa works below.



Braa takes full advantage of the possibility to make serveral SNMP queries using a single SNMP packet and will never send more than one packet per a query type (of course except retries if there was no answer) to a host (btw, see LIMITATIONS). This means that the following commands:



braa 10.253.101.1:.1.3.6.1.2.1.1.6.0 10.253.101.1:.1.3.6.1.2.1.1.5.0 braa 10.253.101.1:.1.3.6.1.2.1.1.5.0,.1.3.6.1.2.1.1.6.0



Do EXACTLY the same: a SINGLE packet requesting information on .1.3.6.1.2.1.1.5.0 and .1.3.6.1.2.1.1.6.0 is sent to 10.253.101.1.



Braa sends queries for every host on the query list, meanwhile listening for answers (non-blocking sockets are used for this purpose). Every upcoming answer is immediately decoded and outputted. After queries for all hosts have been sent, it waits 20 ms, and then every host that did not answered in the first pass is sent the query again. The passes continue, until the retry count (specified using the -r option) is achieved or until all the hosts have answered. In the first case, braa waits then for any delayed messages for 2 seconds (this timeout might be changed by the -t option).



Each time a packet is sent, braa might wait for a short period so as not to flood the link to its SNMP peers. This is controlled by the -d option.
